• Direct bolt-on replacement - no modification required


• 85 degree reduction in Charge Air Temperature observed in real-world conditions (charts below)

• Includes 2.75" cold-side and 2.25" hot-side pipes that outflow OEM by 28% and 15%

• Eliminates the crumped section of the OEM intercooler pipe (cold-side) which restricts airflow from the intercooler to the throttle body

• 214% greater volume and 260% greater frontal area compared to the OEM intercooler (cooling area is 26.5" x 15.75" x 2")


• High-flow cast end tanks (featuring the CVF logo) ensure considerably better airflow efficiency than welded aluminum (intercooler)


• TIG-welded bar-and-plate construction (intercooler)


• CVF Lifetime Warranty

LESS HEAT, MORE POWER

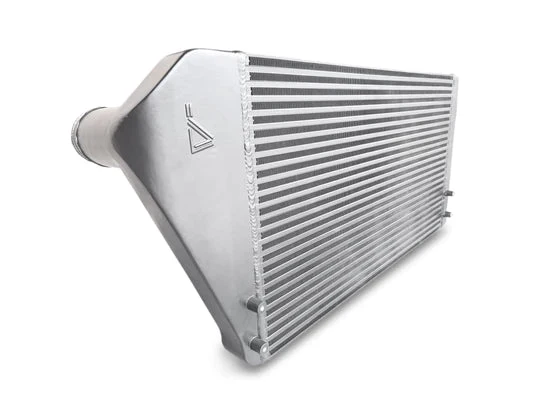

The CVF Performance Intercooler for 2020-2023 Ford Explorer ST is a direct fit replacement that is over two times the size of the stock unit. As the charts above indicate, during independent testing we've observed a reduction of over 85 degrees in Charge Air Temperature where it matters: on the street, and not at the dyno (the same vehicle under similar conditions for both the OEM and CVF Performance Intercooler runs).

EXCEPTIONAL CONSTRUCTION FOR MAXIMUM EFFICIENCY

Manufactured from top-grade aluminum, the CVF Performance Intercooler features a TIG-welded bar-and-plate design for maximum durability and fully cast end tanks to ensure maximum flow of air into the unit and out to your turbo - equaling more HP. As with all of our products, the Performance Intercooler is covered under our Lifetime Warranty against manufacturer's defects.

The Aluminum Pipe Kit expands the OEM dimensions and outflows the OEM cold-side pipe by 28% and hot-side pipes by 15%. The kit includes CVF-branded 4-ply couplers and T-Bolt clamps.

APPLICATION AND INSTALLATION

This part installs on the following vehicles:

• 2020-2026 Ford Explorer ST


• 2020-2026 Ford Explorer 3.0L

• 2020-2026 Lincoln Aviator 3.0L
